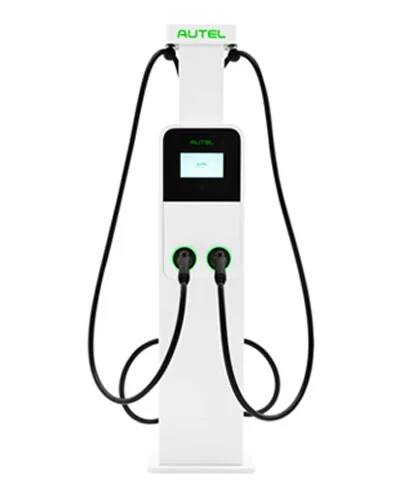

MaxiCharger AC Ultra
The Fastest AC Charger for 2 Vehicles-Maxi Charger AC Ultra
Retailer | Commercial Building | Parking Lot | Residential
MaxiCharger AC Ultra is meticulously designed with ISO 15118 Plug & Charge technology, guaranteeing a hassle-free and seamless charging process. This innovative feature simplifies the charging experience, allowing users to connect and power up their electric vehicles effortlessly.
In a region where sustainability is gaining prominence, MaxiCharger AC Ultra aligns perfectly with the United Arab Emirates' commitment to green initiatives. Its high charging capacity and dual-vehicle capability make it an ideal solution for both individual electric vehicle owners and fleet operators looking to transition towards a sustainable and eco-friendly transportation system.
Stay ahead in the electric vehicle revolution with MaxiCharger AC Ultra, the charger that not only meets but exceeds the expectations of the discerning UAE market. Experience the future of electric vehicle charging with unmatched speed, efficiency, and convenience.
Key Features

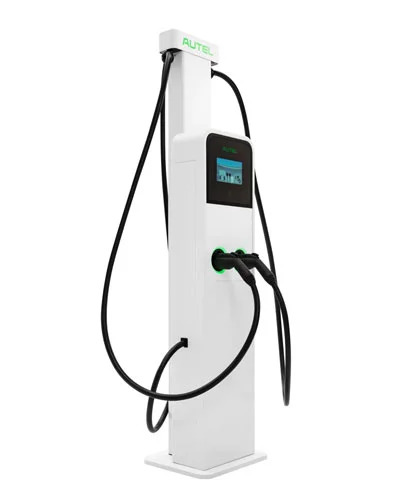

Wall-mounted or Floor mounted
One-piece construction
Lower cost of installation
OCPP 1.6 and 2.0.1 compliant
Better cable Management
WiFi Hotspot Sharing

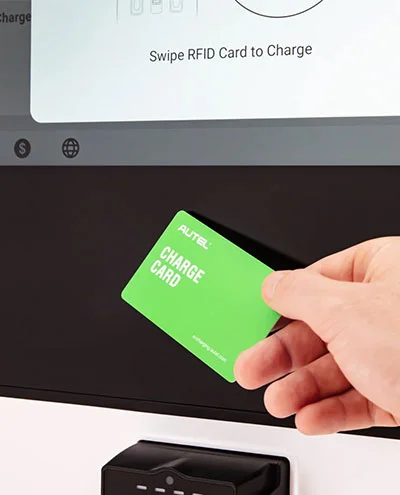

APP, RFID Card, Credit Card, Mobile Payment
8-inch HD Advertising Screen
Weather Resistant
Discover seamless electric vehicle charging with Newmont EV Chargers, meticulously designed to comply with all regulations outlined regulatory policy for EV charger infrastucture both in Emirate of Abu Dhabi and Dubai.
Our state-of-the-art chargers ensure a hassle-free experience, meeting the highest standards for safety and efficiency.
Charge with confidence, Experience the future of sustainable transportation with our cutting-edge technology, tailored for the discerning UAE market.
Charge smart, charge reliable, with Newmont EV Chargers.
Technical Specifications
| Input/output power rating and current | 2*19.2kW (240V AC/80A), Output amperage adjustable via mobile app, from 6A to 80A |
| Input/output voltage | 208V±15%; 240V±15%, 60Hz |
| Network type | LAN, LTE, Wi-Fi, 4G |
| Input cord | Hardwired |
| Connector type | SAE J1772, 7.5m (25’) or 5m |
| Ground fault detection | 20mA CCID |
| Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
| Card reader | Optional: ISO 15693, ISO 14443, NFC |
| Power measurement accuracy | ±1.0% from 1% to full scale |
| General Characteristics | |
| Enclosure rating | NEMA 3R |
| Operating altitude | 2000m |
| Operating temperature range | -40°C ~ +50°C |
| Storage temperature range | -40°C ~ +85°C |
| Mounting | Wall or floor using a pedestal |
| Dimensions (H×W×D) | 625×320×170mm |
| User Interface | |
| Status indication | LED/APP/LCD (8 inch, 1280×720 touch screen) |
| User interface | Autel Charge APP, Autel Charge Cloud |
| Connectivity | |
| Communication protocols | OCPP 1.6J (can be upgraded to OCPP 2.0.1 later) |
| User authentication | APP, RFID card, Credit Cards (Optional) |
| Software Update | |
| Software update | OTA updates via web portal |
| Certification and Standards | |
| Safety and compliance | UL 2231-1, UL 2231-2, UL 2594, NEC Article 625, CSA C22.2, UL 916 |
| EMC compliance | FCC 15 Class B |
| Certification | Energy Star, OpenADR 2.0b |
| Warranty | 36 months, warranty extension possible |
