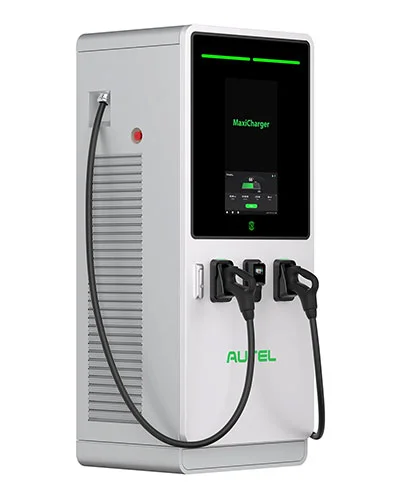

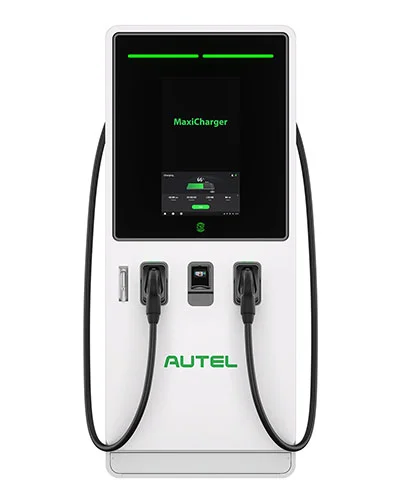

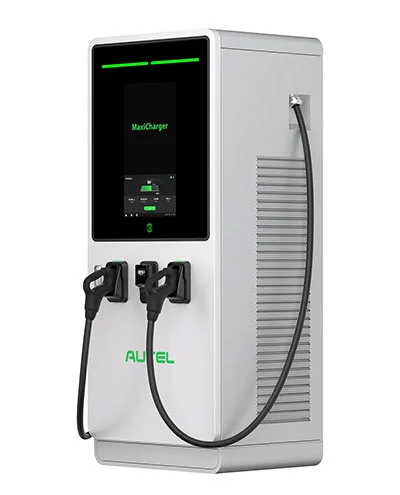

MaxiCharger DC Fast
The whopping 240kW fast charging with the world's first triple protection technology ensures safe charging and intelligent battery management for an extended battery life. The DC Fast chargers are compatible with 99.5% of vehicles on the planet.
The 27-inch display showcases Charger+Cloud BMS+VCI real-time analysis, ensuring a safe environment in the area.
Achieve up to 20% extra battery saving with an integrated AI algorithm and EV battery protection through the health charging mode.
Customization options include power settings from 60kW to 12kW and customizable cable lengths tailored to site conditions. MaxiCharger DC Fast is strategically installed at prominent landmarks—shopping malls, hotels, and residential areas across Dubai, Abu Dhabi, and other parts of UAE.
The 27-inch display showcases Charger+Cloud BMS+VCI real-time analysis, ensuring a safe environment in the area.
Achieve up to 20% extra battery saving with an integrated AI algorithm and EV battery protection through the health charging mode.
Customization options include power settings from 60kW to 12kW and customizable cable lengths tailored to site conditions. MaxiCharger DC Fast is strategically installed at prominent landmarks—shopping malls, hotels, and residential areas across Dubai, Abu Dhabi, and other parts of UAE.
Technical Specifications
| DC Output Connection | |
|---|---|
| Charging Mode | Mode 4: CCS1 |
| Output Power | 60 kW / 120 kW / 180 kW / 240 kW |
| Output Voltage | 150–1000 V |
| Output Current |
CCS1 Standard: 200A Optional: 300A (Nominal), 400A (Peak) CHAdeMO: 125A or 200A |
| Number of Outputs | 2 × CCS1 or 1 × CCS1 + 1 × CHAdeMO |
| Average Efficiency at Full Power | ≥95% |
| AC Input Connection | |
| Earthing System | 3P + PE (No Neutral) |
| Input Voltage | 3-phase 480V AC +10% / -15% |
| Input Frequency | 60 Hz |
| Power Factor | ≥0.98 |
| Harmonic Distortion (THDi) | ≤5% |
| General Characteristics | |
| IP Rating | NEMA 3R |
| Operating Altitude | 2,000 m |
| Operating Temperature | -35°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Mounting | Floor Standing |
| Dimensions (H × W × D) |
1950 × 820 × 600 mm (60–120 kW) 1950 × 820 × 700 mm (180–240 kW) |
| User Interface | |
| Screen Type | 27-inch LCD Touch Screen (15.6-inch optional) |
| Status Indication | LED / LCD App |
| User Interface | Auto Charge App / Auto Charge Cloud |
| Connectivity | 4G, Bluetooth, Wi-Fi, Ethernet |
| Communication Protocols | OCPP 1.6J (Upgradeable to OCPP 2.0.1 later) |
| User Authentication | APP, RFID Card, Credit Card (Optional) |
| Software Updates | |
| Update Method | OTA updates via web portal |
| Certification & Standards | |
| Safety & Compliance |
UL 2202, UL 2231-1, UL 2231-2, CSA No. 107.1-16, NEC Article 625, ISO 15118 Plug & Charge |
| Certification | FCC 15 Class A (Class B optional) |
| Warranty | 24 months, warranty extension possible |
